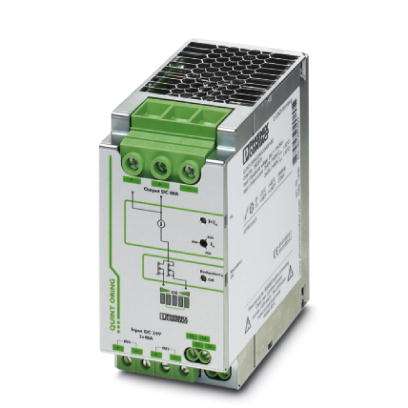

2902879 – QUINT-ORING/24DC/2X40/1X80 – Redundancy module, with protective coating
€435.78 excl. VAT
Active QUINT redundancy module for DIN rail mounting with ACB (Auto Current Balancing) Technology and monitoring functions, input: 24 V DC/2x 20 A, output: 24 V DC/1 x 40 A, including mounted UTA 107/30 universal DIN rail adapter
Available on backorder
QUINT ORING, 24 V DC
? Preventive function monitoring
? Continuous redundancy right through to the load: the use of two Plus output terminal blocks makes it possible to devise a redundant wiring concept that runs right through to the load
? Double the service life of the redundant solution, thanks to even load distribution:
the ACB (Auto Current Balancing) technology automatically and symmetrically distributes the load current to two power supplies operating in parallel
? Save energy: decoupling is achieved with MOSFETs and results in energy savings of up to 70% compared to conventional diodes
? OVP (overvoltage protection): surge voltages are limited to 32 V.
QUINT ORING, with protective coating
With ATEX approval for superior system availability under extreme ambient conditions, such as dust, dirt, corrosive gases, and 100% humidity
? Devices compliant with standards EN 60079-15 and EN 60079-0 may be
installed in a potentially explosive area
? Suitable for use in Class I, Division 2
Download Data Sheet| Weight | 0.9 kg |
|---|---|
| Dimensions | 0.13 × 0.125 × 0.066 cm |
| Sold | |
| Availability | |
| For Higher Qty | |
| Delivery Time |
