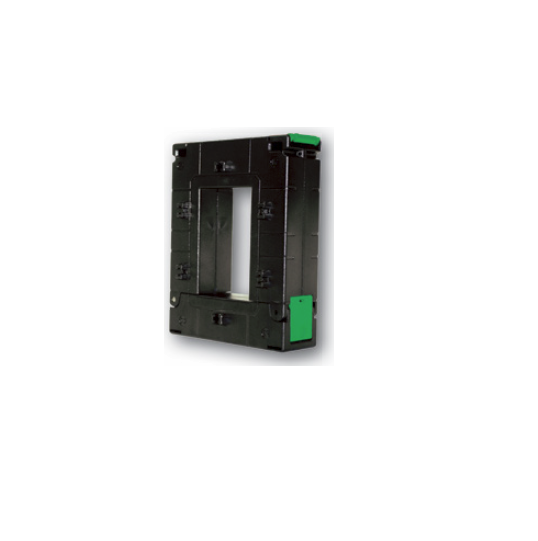

LCTS – 1-phase current transformers with split core (SPLIT CORE SERIES)
Quickly fixing current transformers LCTS series with split core are adapted to easy assembly on the mounting rail without the necessity of disconnecting the current circuit.

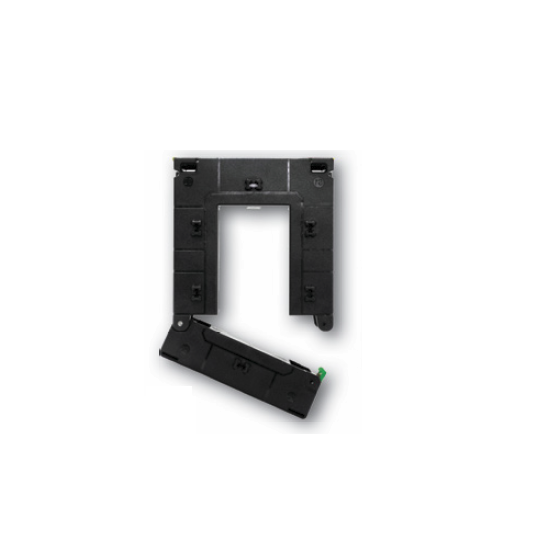

Owing to split core, the transformers could be used on the already installed current rails without the necessity of their disassembly and cutting.
The transformers assembly on the rails with the various sections is possible by 4 window dimensions:
– 23 x 33 mm
– 82 x 52 mm
– 82 x 122 mm
– 82 x 162 mm
Measuring ranges: 100…5000 A

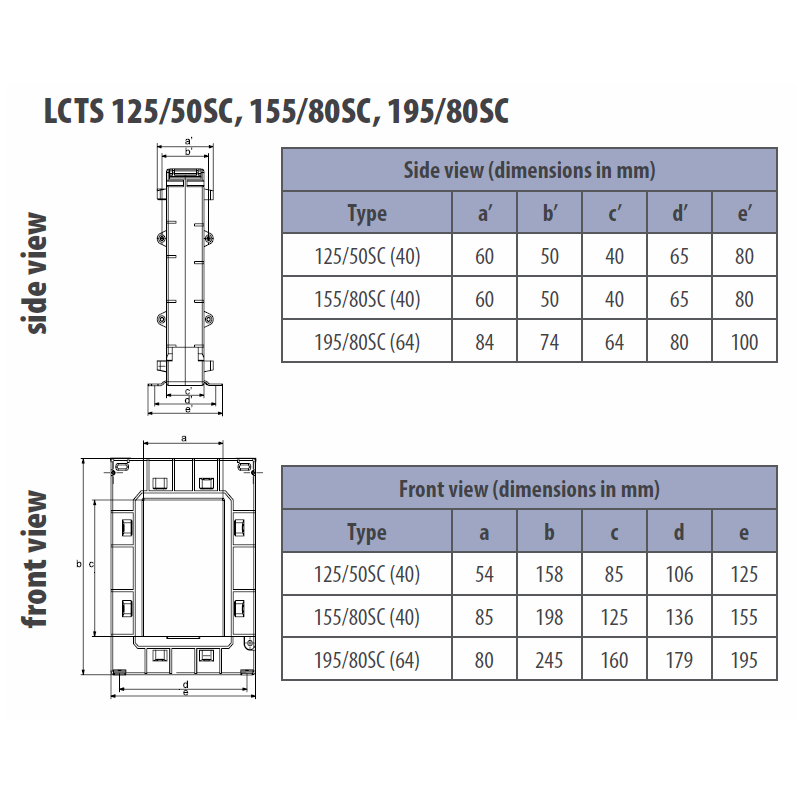

External dimension: depends on version.
Download Data Sheet (page 28)
