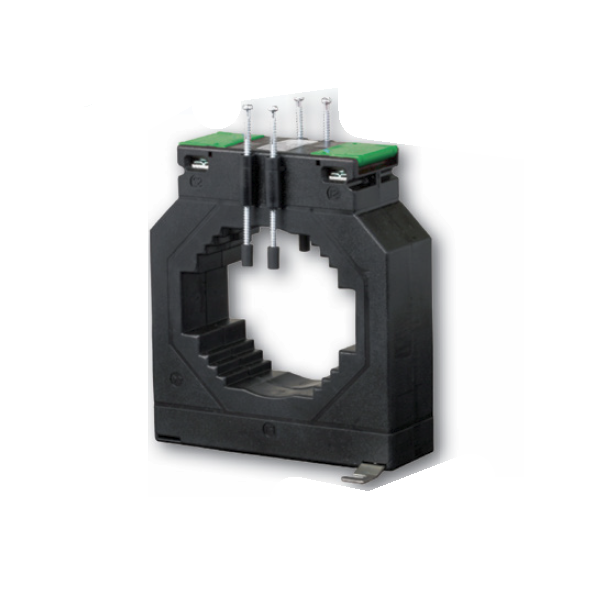

LCTB 104/80 (45), 1000A/5A, class 1/3, 20VA, Ø 65mm, 80x12mm – Current transformer

36.00 excl. VAT

LCTB 1-phase current transformers with round conductor
(BUSBAR SERIES)

Hole diameter : Ø 65mm
Busbar: 80x12mm or 2x60x15mm or 2x50x25mm

Type: 104/80 (45) (104804)
Primary current: 1000A (1000A)
Secondary current: /5A (5)
Accuracy class: class1/3 (1)
Rated power: 20VA

Available on backorder
